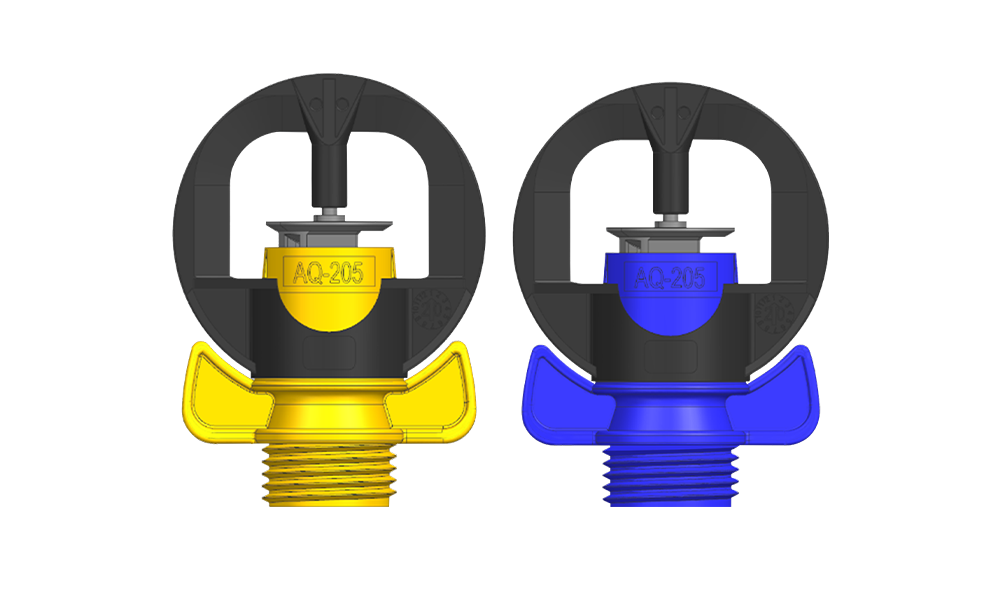

AQ-205 (Aquatuff)


Micro Sprinklers

AQ-205 (Aquatuff)

Designed specifically for orchards, nurseries, greenhouse, vegetable crops and under tree irrigation of banana plantation, table grapes, etc. Ideal for plants spaced up to 6 meters (20 ft.), it features multiple connection options for ease of use and a robust, user-friendly structure. With only three parts, it ensures quick installation and low-maintenance operation. The unique swivel/rotor design guarantees excellent water distribution.


Features

  • Versatile Design: User friendly and sturdy micro sprinkler, ideal for frost protection & overhead cooling.
  • Insect Proof: Unique anti-Insect pop up design swivel /Rotor for excellent water distribution.
  • Good Coverage: For proper distribution the sprinklers can be spaced up to 6.0m (20.0 ft.)
  • Low Angle: Also available in low angle version of 14°
  • Available connections: - Push-fit, Quick threaded, 3/8” and ½” threaded

Technical Specification

  • Recommended working pressure: 1.5 - 2.5 kg/cm2(21- 36 psi)
  • Flow Rates: 31-450 L/H (8 -119 GPH)
  • Wetted diameter range: 6 - 13m (20 - 43 ft.)
  • Recommended filtration: Violet - Grey Nozzle: 200 microns (80 mesh)
  • Recommended filtration: Green - White Nozzle: 500 microns (30 mesh)
