Manifolds and Accessories

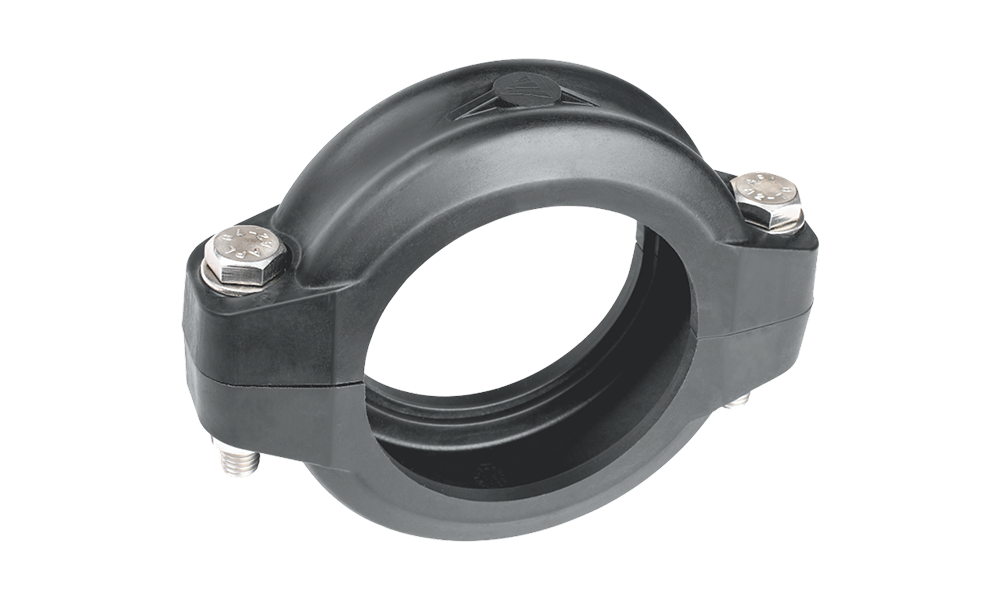

Grooved End Coupling
Grooved End Coupling is also known as Victaulic Coupling. Grooved End Coupling allow easy removal of pipe sections or irrigation filters/ Hydrocyclone for replacement, cleaning and service. Installation time and cost is low, since only a socket wrench is.
Features
- No heat or threading required to coupling two groove end connections.
- Grooved End Coupling for grooved end pipe or irrigation products combine the features of a straight line or a flexible coupling. The housings engage the groove around the entire pipe circumference, locking the pipe together.
- Since the groove are not as deeply cut as threaded pipe, less material is removed and more of the pressure rating of the product/pipe is retained.
- Nut & Bolt made of stainless steel for durability.
- Excellent UV resistance.
Technical Specification
- Material: Reinforced Polyamide.
- Connection Size: 2'' (DN50): AQ-196, 3'' (DN80): AQ-198
- Max. Operating Pressure: 10 kg/cm².
- Colour: Black.
